Features and properties
Technical Datas
Wide filter door
Width: 450mm
Height with handle: 440mm
Depth: 435mm
Depth: 435mm
Weight: 19KG
Voltage: 230V AC ±5%, 50-60Hz
Throughput: 15-40l/sz
Noise level: 45-59dB(A)

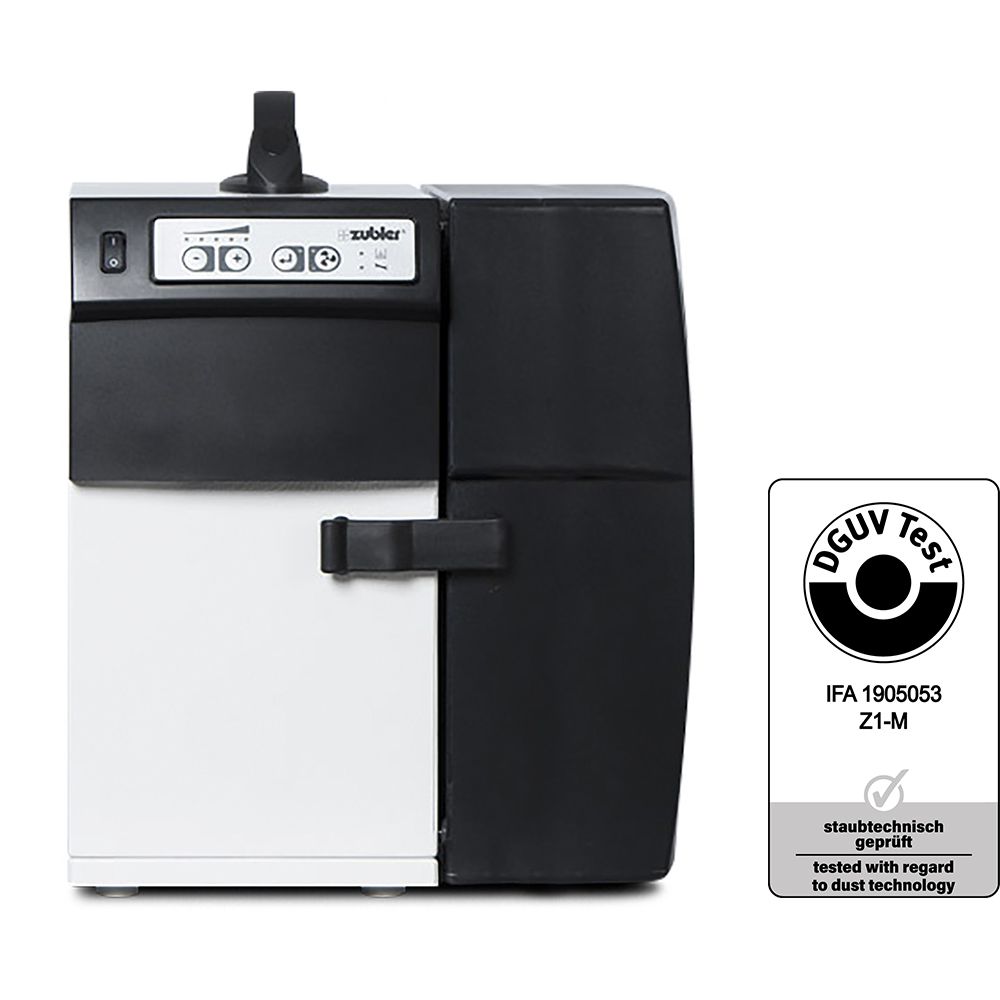

Working place suction unit for installation or mobile use
The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application.

Regulated step switch
The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag.

Motor technology
The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.

IFA certificate for dust-related testing by the DGUV
The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

Zubler Extraction Technology APP
A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.
