Features and properties
Noise level: 41-60dB(A)
Options for the exhaust air connection
The standard equipment of the Z1 suction systems includes a diffusor at the output of the system, which guarantees the legally prescribed exhaust air flow of a maximum of one meter per second. Alternatively, an H14 filter or an activated carbon filter can be installed there in compliance with the prescribed guide value. As a further alternative, an adapter for the exhaust air connection to the outside is optionally available.
Regulated step switch
The Z1 has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag. The fifth suction level serves as a boost for short-term maximum suction power.

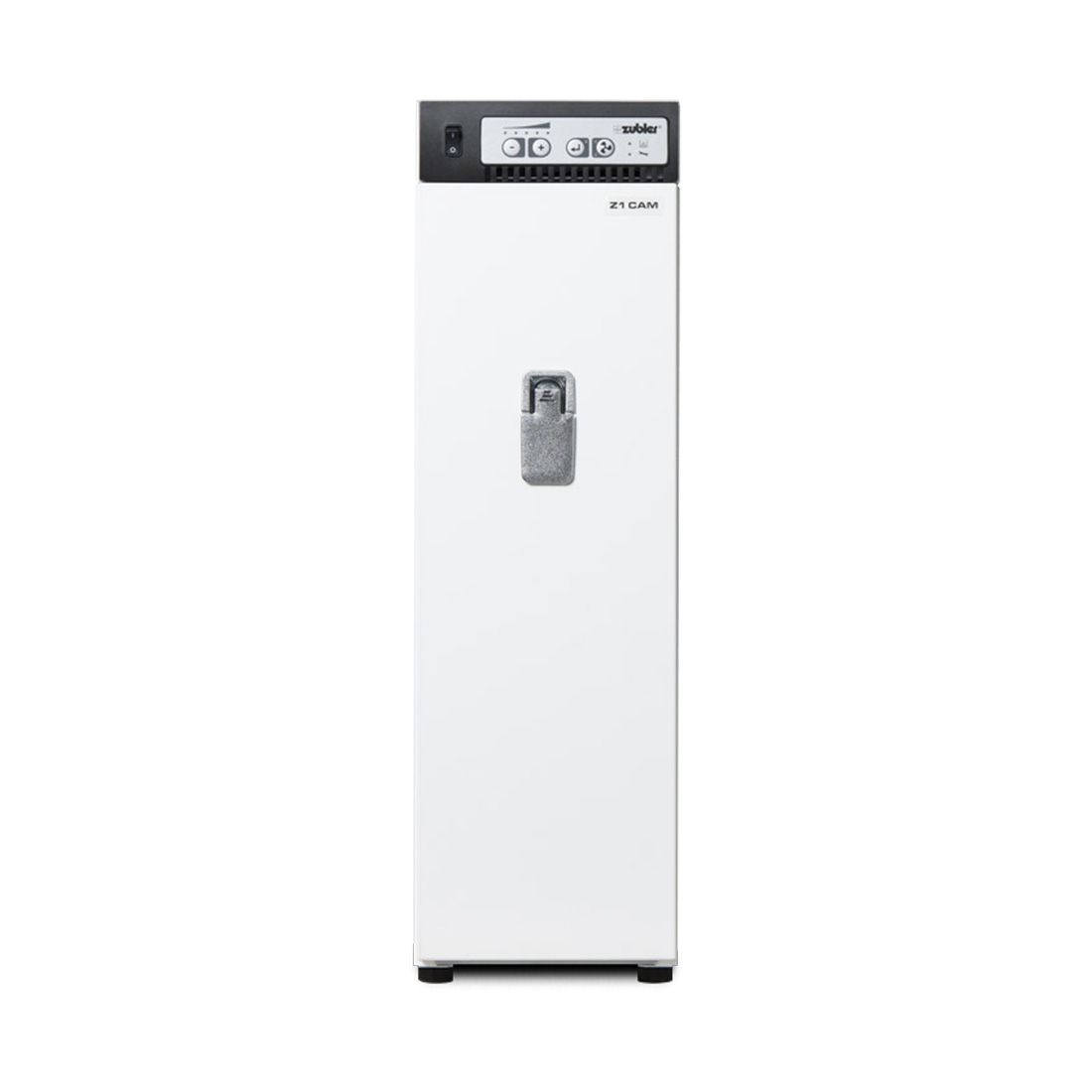

The new Smart Drive control for carbon brush motors is installed in the suction systems Z1 ECO and Z1 CAM. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.
IFA certificate for dust-related testing by the DGUV
The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.
Zubler Extraction Technology APP
A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.
External control panel
For a higher comfort in handling the device we have developed an external control module, which you can additionally install at a freely selectable position of your work station. Always at your eye level, you control and operate the unit and obtain directly important information about the suction system.
